Tool Management Systems

Manage tools economically

You have a wide range of tool items, would you like to have managed them, issued them unmanned 24 hours a day and reordered them automatically? Are you looking for an economical solution with maximum variability?


We offer you the premium league of tool dispensing systems:

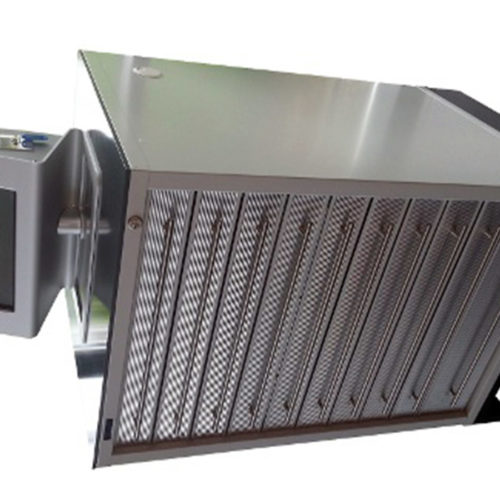

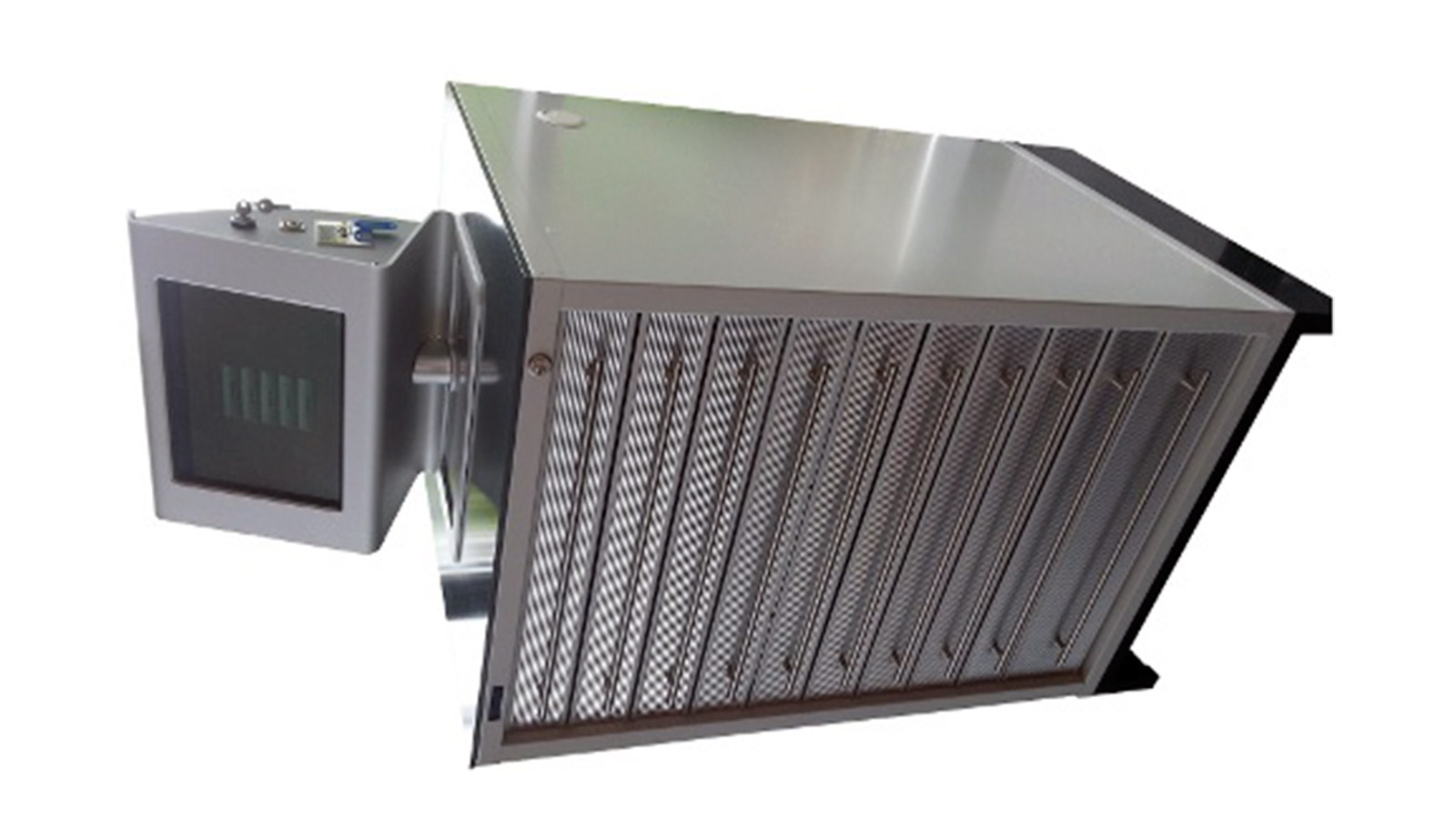

TSS Drawer Cabinet


The Toolserver Drawer Cabinet (TSS) has proven and reliable software that has been successfully used on the market for many years. However, we follow the approach in conjunction with our partners to be able to grow from a small tool management solution to a company-wide solution. From the budget for “tool management beginners” to the big “final solution” for your tool management.

The TSS is the world champion in variability and adapts to the different needs of a company, similar to a chameleon in its environment. The drawers can be divided individually, either with small parts storage boxes, or with the high-security cells (flaps, see Fig.2) of which up to 44 can be accommodated per drawer. From assembly tools, assembly requirements, measuring equipment and small tools such as indexable inserts, milling cutters or drills. Everything can be stored, managed and locked away. The complete spectrum of a modern production can be represented in it.


Let us advise you

TSS Attributes

  • modular system
  • different module and drawer heights
  • electromechanically locked drawers
  • mechanical output time between 1 and 3 seconds
  • storage insert boxes
  • optional electromechanically secured individual compartments via metal flaps
  • LCD display for display of drawer no. and compartment no., as well as LED signaling at flap
  • emergency unlocking via key
  • combinable with KARDEX / MEGAMAT shuttle systems
  • touchscreen and mini PC built into the stylish housing
  • PIN-LOGIN standard, vending machine access via chip card or transponder optional
  • modern SQL database
  • data maintenance takes place network-wide since client-server principle
  • open interfaces, connection to any PPS and ERP systems possible
  • extensive data evaluations through integrated reporting software
  • warehouse management with minimum stock monitoring
  • manual warehouse (external warehouses can be co-managed)
  • automatic ordering
  • integrated email system
  • LAN and ISDN interfaces
  • emergency power supply optional
